Ventilation profile

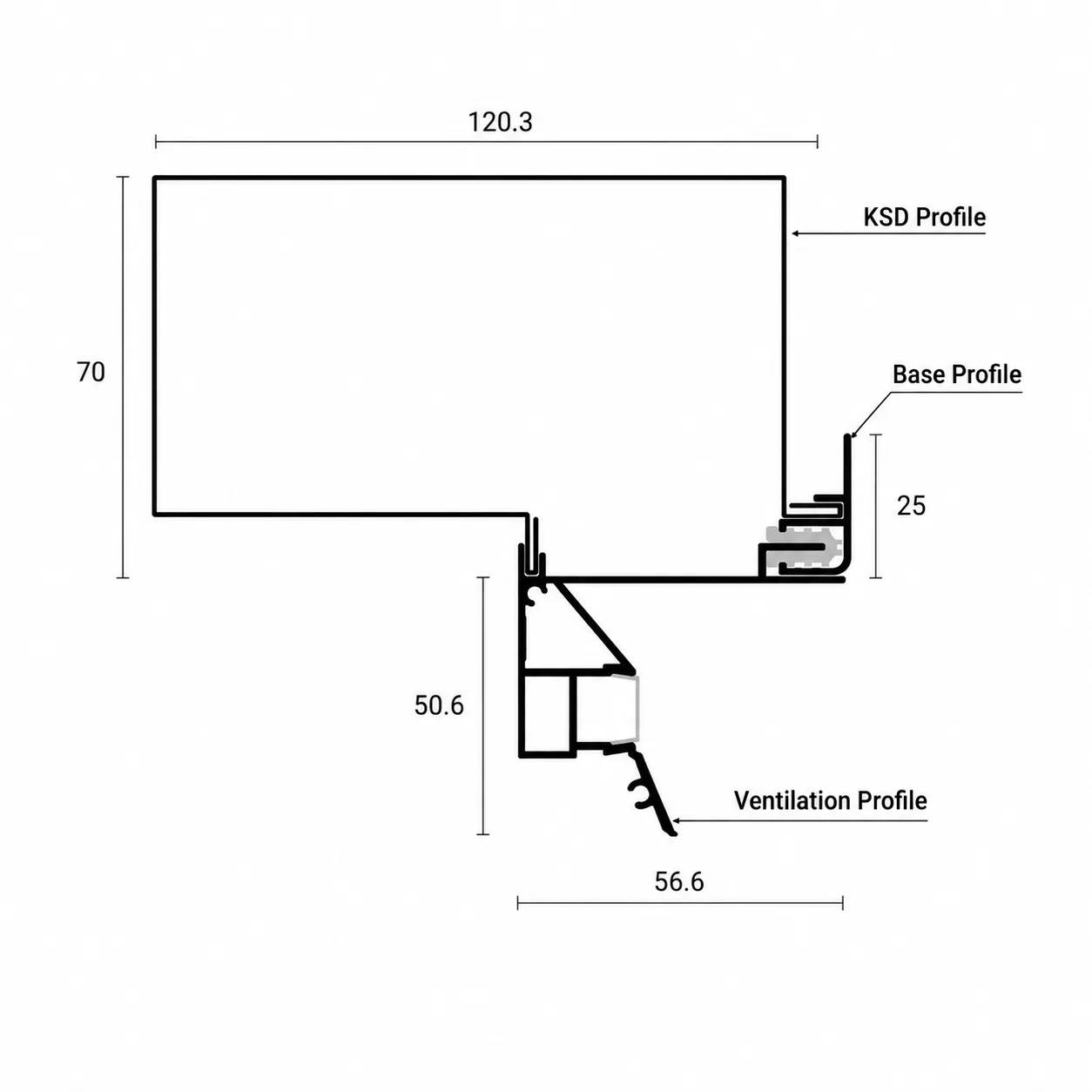

Two-piece ceiling profile with perforations for ventilation, with the possibility of installing a static pressure chamber (SPC) for localized movement of air masses. It is mounted with the ceiling frame to provide a decorative gap of 30 mm. The connection with the wall is provided by the base profile UMBRA through a movable polymer element.

The shape of the profile allows to install the strip and cover it with a complete diffuser.

The UMBRA RAC uses ERA 612rp20p adapter or 620VP 60 to 204 duct.

RAC test protocol

The UMBRA ventilation profile has a fixed distance of 30 mm from the wall. The shape of the profile allows an LED strip to be fitted and covered with the supplied diffuser, giving soft perimeter lighting.

Air is extracted by the static pressure chamber. The system is mounted on polyurethane sealant, which provides 100% tightness. One chamber can remove 50 cubic metres of air per hour without any noise.

The whole system is fixed to the UMBRA base profile installed beforehand along the perimeter of the room.
